BMW X3 CID screen display part 6.5” F25 2010 2018

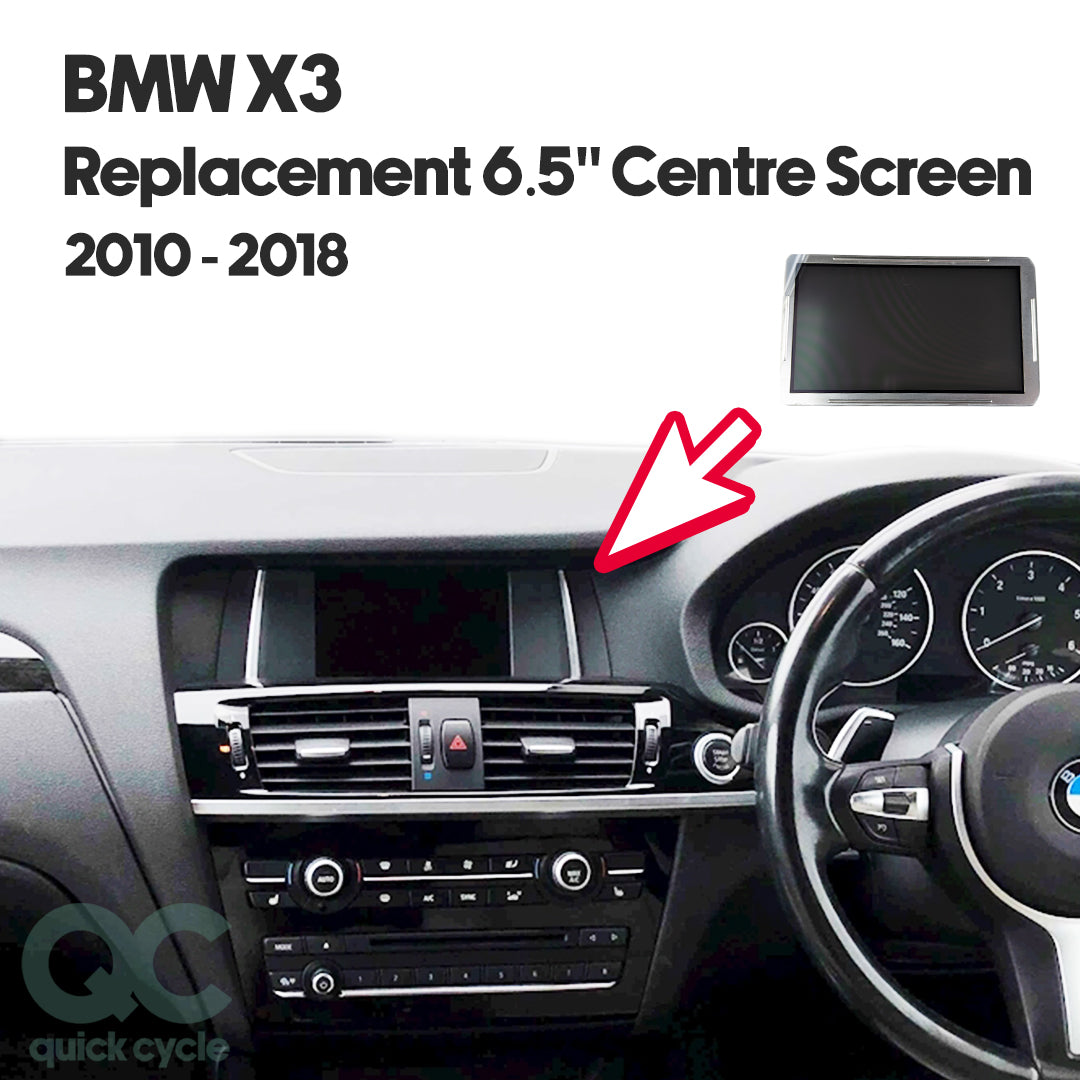

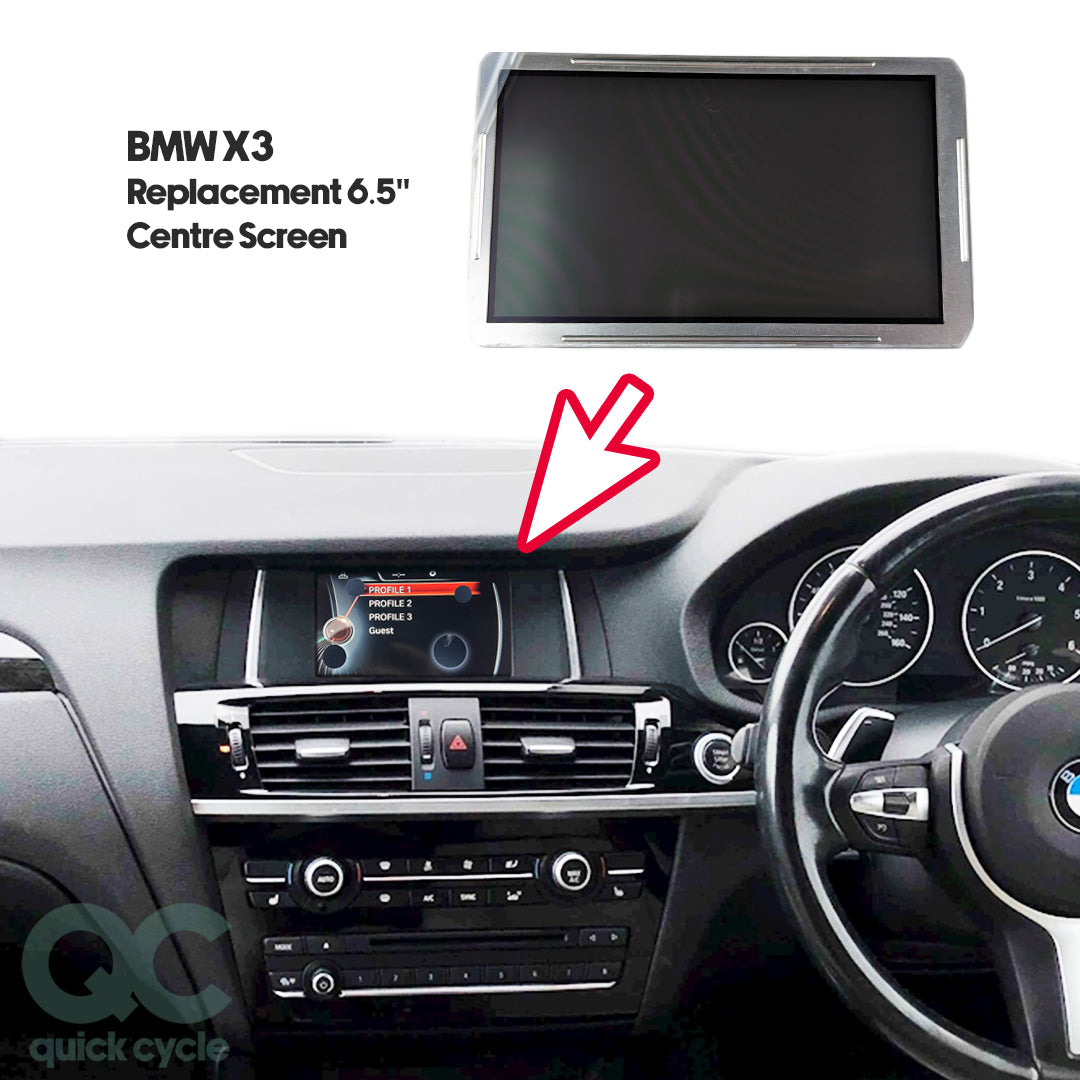

BMW X3 F25 6.5" 2009 2017 centre console information CID display screen LCD

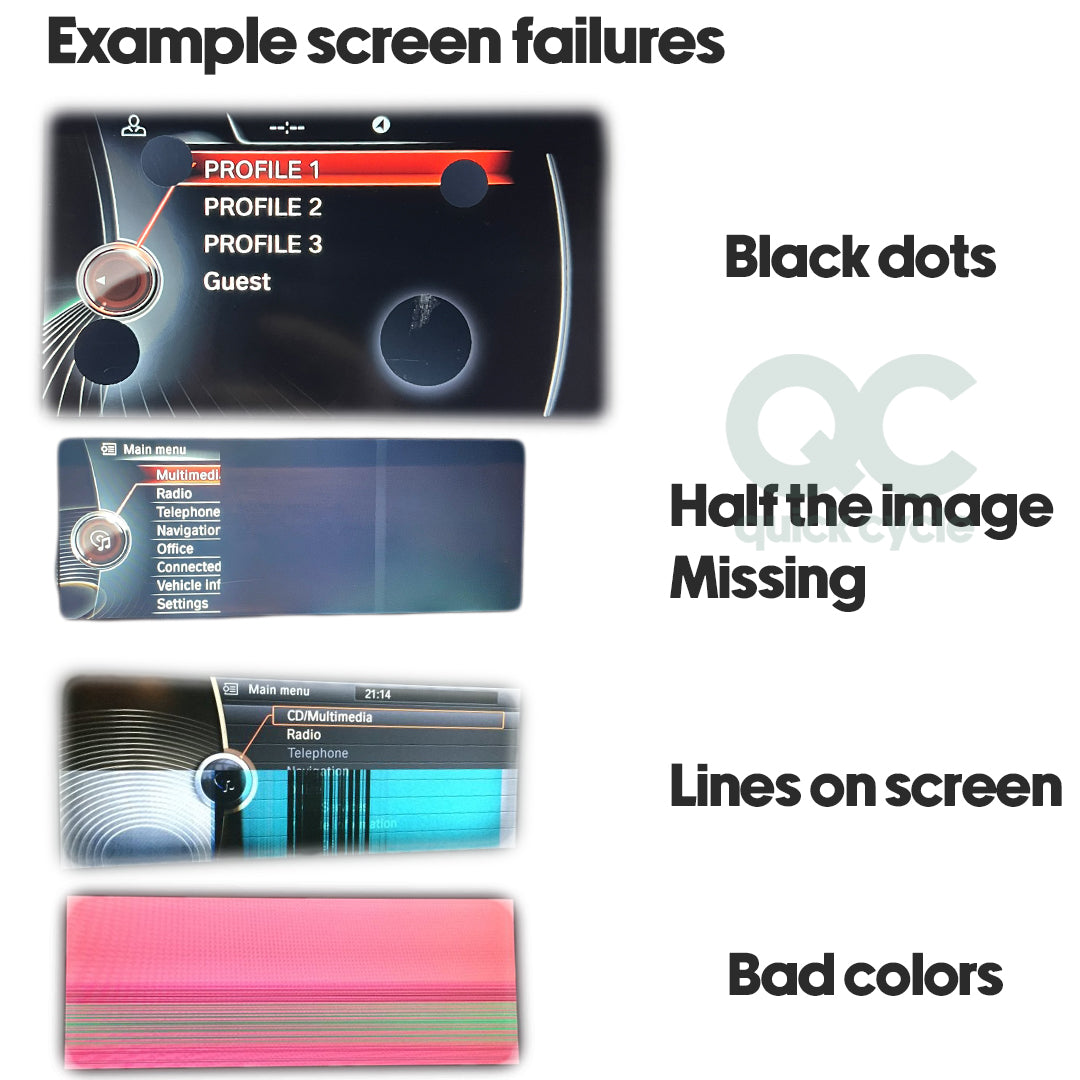

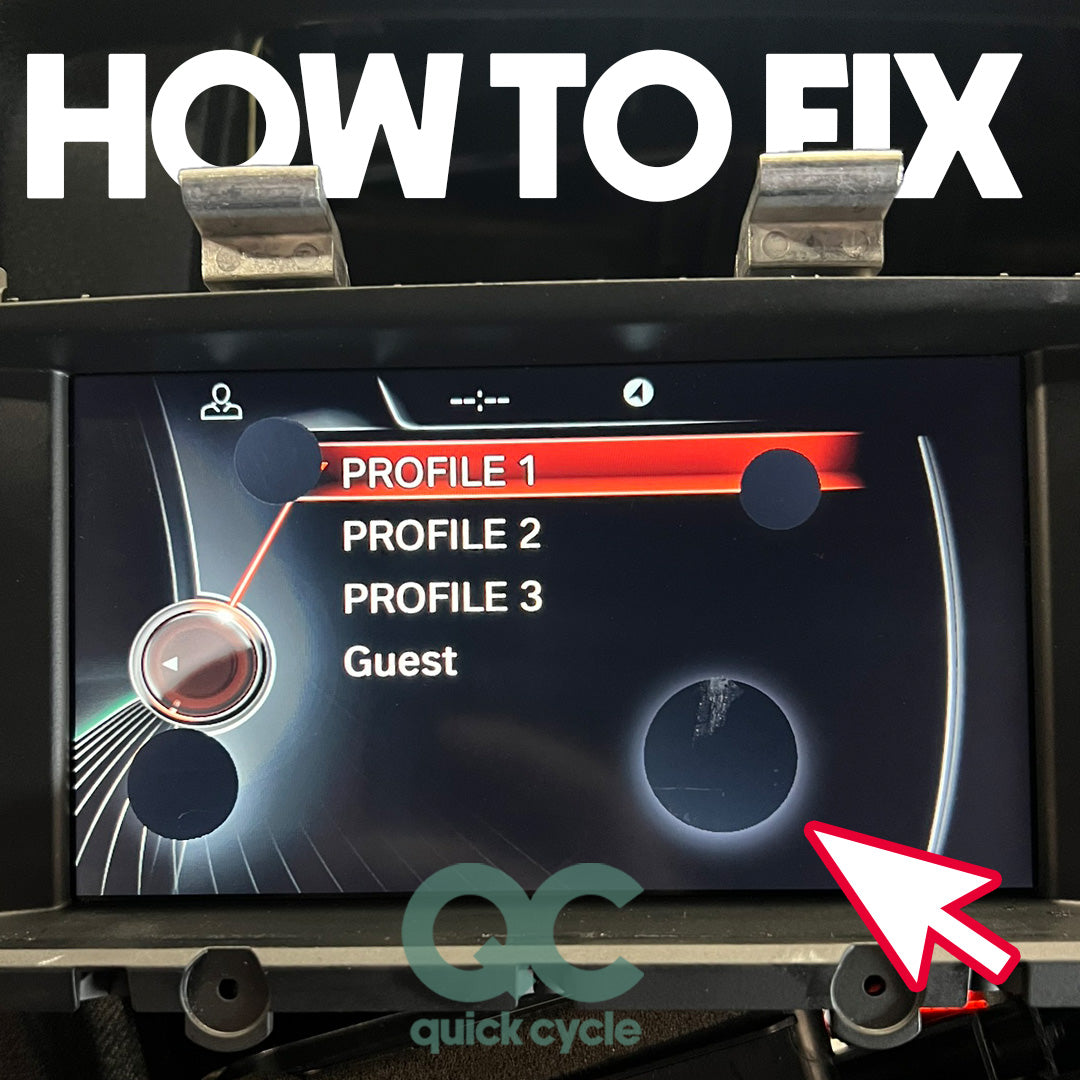

Does your screen have black circles or missing pixels across the front that prevent clear viewing?

Replace the specific broken LCD screen that needs replacing in your dashboard. BMW will only provide the complete CID assembly at a significant cost. Reduce the cost of your repair by changing the LCD screen inside the central information display unit. The display unit needs to be removed from the dash and the screen replaced inside. No coding is necessary by replacing the component LCD screen.

The replacement screen provided is an OEM quialtiy replacment.

Listing is for a 6.5" screen, if you vehicel has the larger 8.8" version please click HERE.

Shipping

Part will be dispatched on the same if purchasing before 4 PM.
FREE NEXT DAY SHIPPING is applied to this listing in the UK (No upgrade needed at checkout).
International orders are welcome for additional £15 standard delivery 10-15 days.

Compatibility

BMW X3 F25 (06/2009 — 08/2017)

Fitted with screen 6.5" screen as imaged, applicable part numbers:

Please confirm if you CID module has the specifc numbers listed below present.

If you your CID looks similar to the below module but numbers do not match please send us a quick message with image of the module for us to confirm that it will fit your application. 30 day free returns are accepted.

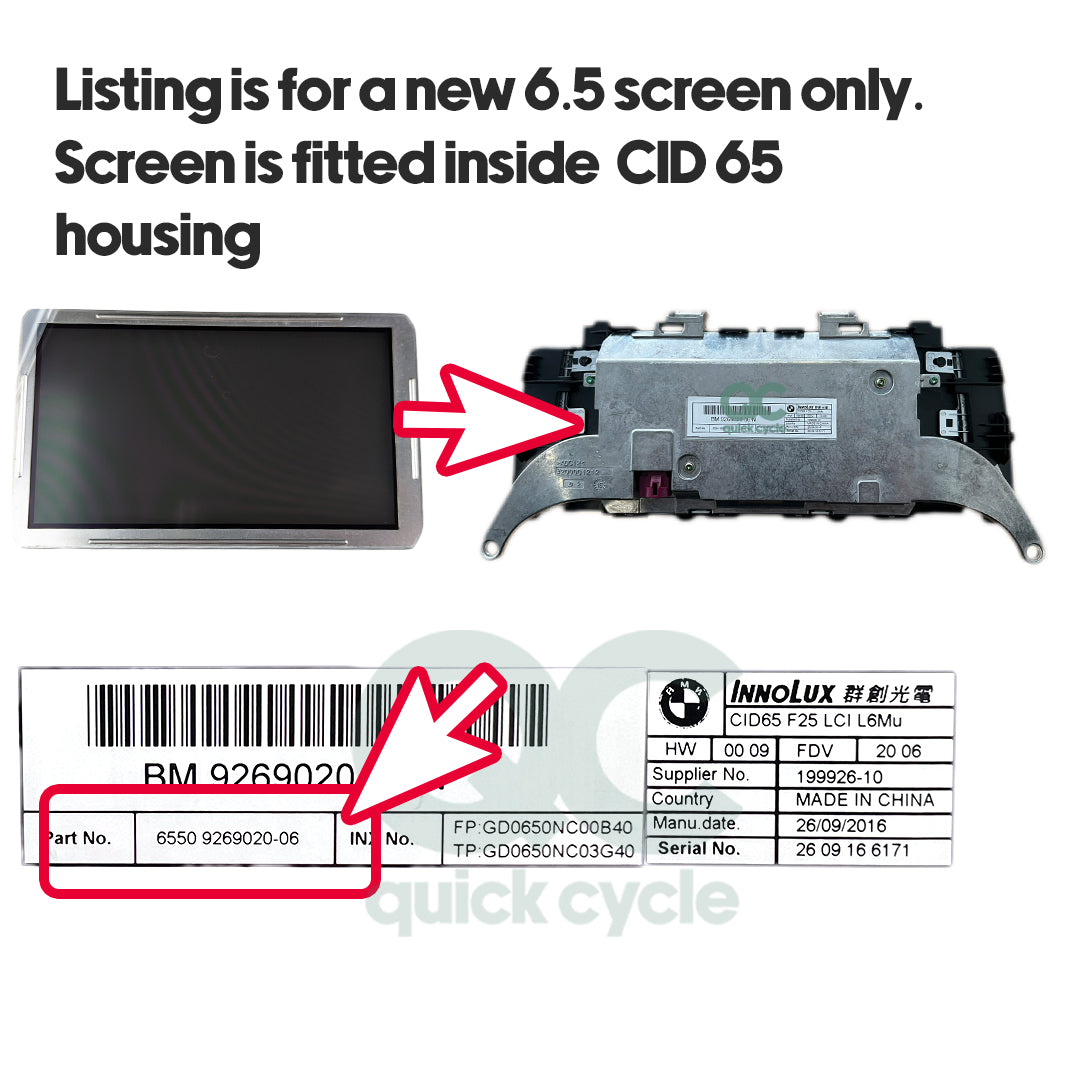

Codes on back CID of screen module:

BMW 6.5 CID F25

BM 9269020 06 N

6550 926020-06

CID 65 F25 LCI L6Mu

Instruction

A link to fitting this screen in the module will be supplied with the listing. This is not specific to the X3 but is specific to replacing the LCD screen in the CID module.

To remove the screen module please see below basic guide on the process.

Basic instruction for guidance – No liability is accepted for loss or damage by following the guide below.:

1. Remove the trim panel with AC vents and Start Button by gently prying from the bottom with a nylon trim tool if needed to loosen and pull the panel straight out.
2. Unscrew the 2, T20 Torx screws from the bottom left and right of the display housing
3. Unplug the purple connector (the worst part of the DIY). There is a tab on the side to push in and it takes a lot of force and wiggling to pull it off the back of the display.
4. Separate the black trim piece from the display assembly by gently prying the side and bottom black tabs up over the short metal posts
5. unscrew the Phillips screw next to the connector holding the LCD panel and circuit board assembly
6. Remove the circuit board from the flexible metal brackets on the back of the LCD panel
7. Disconnect the small and large ribbon cables connecting the LCD panel to the circuit board that has the connection by lifting up the locking black flaps
8. Move over the 4 sticky pads from the old LCD panel to the new one.
9. Connect the new LCD panel to the circuit board through the small and large ribbon cables. Make sure the ribbon cables are fully seated and the tabs on the cables match up with the indentations on the connectors before locking the cables in place.
10. Attach the circuit board to the back of the LCD panel into the metal brackets and assemble the display housing.
11. Install it back into the car in the reverse of removal.
12. If you get a message on the display saying "no signal" or something similar, do a system reset by pressing and holding the volume knob for ~30 seconds.
